Fusion Bonded Epoxy (FBE) coating shall be applied to both the internal diameter (ID) and external diameter (OD) of the dismantling joint to ensure long-term corrosion protection in buried or exposed service conditions. All joint components shall be grit blasted to the specified surface cleanliness and anchor profile prior to coating. The FBE coating shall be electrostatically applied and heat cured to achieve a uniform, defect-free layer of the specified thickness over all wetted and external surfaces, including flanges, edges, and transition areas, while maintaining proper masking of sealing and mating surfaces to ensure joint performance during installation and operation.

An internal and external FBE-coated valve or pipeline component with WRAS approval features fusion bonded epoxy (FBE) coating both inside and outside, providing complete corrosion protection against moisture, chemicals, and soil. The internal coating ensures safe, non-contaminating flow of potable water, while the external coating protects the body from external corrosion and mechanical damage. WRAS (Water Regulations Advisory Scheme) approval confirms that the FBE coating is safe for contact with drinking water, making it ideal for municipal water supply, wastewater, and industrial pipeline systems. This dual-coated, WRAS-approved design ensures long service life, minimal maintenance, and reliable, corrosion-free operation in demanding environments.

An internal FBE-coated spool is a pipeline component with its internal surfaces lined with fusion bonded epoxy (FBE) to protect against corrosion, scaling, and chemical attack. Typically made of ductile iron, carbon steel, or stainless steel, the FBE coating ensures smooth flow, prevents material degradation, and extends the service life of the spool. These spools are widely used in water, wastewater, oil & gas, and industrial piping systems, where maintaining internal cleanliness, reducing maintenance, and ensuring long-term durability are critical. The internal FBE lining makes them especially suitable for potable water and corrosive fluid applications.

An internal FBE-coated stand post is a durable water distribution component designed for municipal and industrial pipelines. The fusion bonded epoxy (FBE) coating on the internal surfaces protects the stand post from corrosion, scaling, and chemical attack caused by water or other transported fluids. Typically made from ductile iron or steel, the FBE lining ensures smooth internal flow, extends service life, and minimizes maintenance. Internal FBE coating in stand posts is especially important for potable water systems, as it maintains water quality while providing long-term reliability in harsh or buried environments.

An internal FBE-coated gate or ball valve features a fusion bonded epoxy (FBE) lining on the valve’s internal surfaces, providing excellent corrosion resistance and protecting the valve body from water, chemicals, or abrasive media. In gate valves, the internal FBE coating prevents corrosion along the stem and seating area, ensuring smooth operation and tight shut-off. In ball valves, the FBE coating safeguards the internal ball and cavity, reducing wear, leakage, and chemical attack. Typically made of ductile iron, carbon steel, or stainless steel, these valves are widely used in water, wastewater, oil & gas, and industrial pipelines, where durability, long service life, and minimal maintenance are critical.

An external FBE-coated coupler is a mechanical fitting used to join or extend pipes while providing robust corrosion protection. The fusion bonded epoxy (FBE) coating on its exterior ensures long-term resistance against moisture, chemicals, and soil, making it ideal for buried pipelines or harsh industrial environments. Typically made from ductile iron, carbon steel, or other durable metals, the coupler features precise threading or flanged connections for secure pipe joining. Its FBE coating not only prevents external corrosion but also enhances service life, reduces maintenance, and ensures reliable performance in water, wastewater, oil & gas, and industrial pipeline systems.

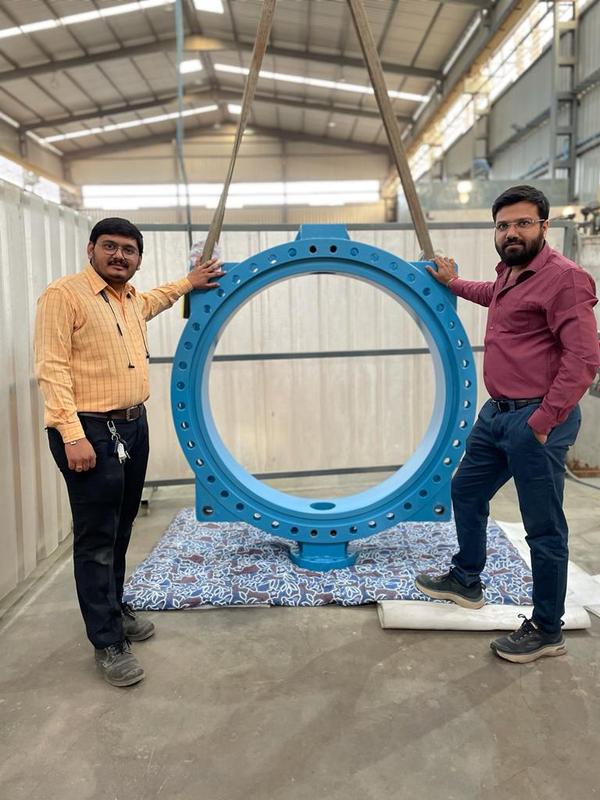

An FBE-coated 48" butterfly valve is a large-diameter flow-control valve commonly used in water, wastewater, oil & gas, and industrial pipeline systems. The fusion bonded epoxy (FBE) coating provides excellent corrosion resistance, protecting the valve body from moisture, chemicals, and soil when used in buried or aggressive environments. Designed for high flow capacity with low pressure drop, the 48-inch butterfly valve typically features a ductile iron or carbon steel body, resilient or metal seat, and gear or actuator operation for smooth and reliable control. Its robust construction, tight shut-off capability, and long service life make it ideal for transmission and distribution pipelines. FBE‑coated 48″ butterfly valves

External FBE (Fusion Bonded Epoxy) bend coating is a protective epoxy layer applied to pipeline bends to maintain corrosion resistance and mechanical protection after bending. The coating is electrostatically applied to a heated bend surface, where it melts, flows, and cures into a uniform, tightly bonded film. It provides excellent adhesion, chemical resistance, and durability, ensuring the bend has the same level of protection as the straight pipe sections during handling, installation, and service life.

A 200 NB body with internal and external FBE coating is a pipeline component designed for DN200 (8-inch) piping systems, commonly used in industrial fluid handling applications. The body, typically manufactured from carbon steel or ductile iron, is coated on both the internal wetted surfaces and the external exposed surfaces with Fusion Bonded Epoxy (FBE). This coating is applied electrostatically and fused at high temperature to form a uniform, tightly bonded protective layer that offers excellent resistance to corrosion, abrasion, moisture, and chemicals. Internal FBE coating protects the component from fluid-induced corrosion and reduces scale buildup, while the external coating safeguards it against environmental and atmospheric damage. This dual protection ensures extended service life, reduced maintenance, and reliable performance in demanding applications such as water treatment, oil & gas, chemical processing, and industrial piping systems.

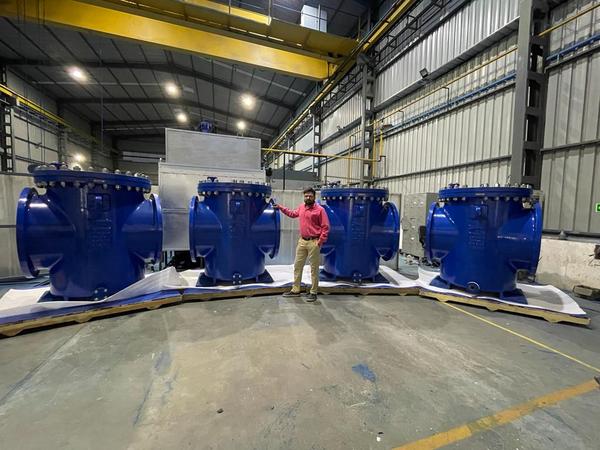

> What It Is A strainer is an industrial pipeline device that filters out solid particles (like rust, scale, debris) from fluid flowing through a pipe. A 56 inch strainer refers to its nominal pipe size (DN ~1400 mm) — a very large unit used in high-flow industrial systems. At approximately 6 tons, this is a heavy-duty strainer built for large diameter pipelines and demanding applications. FBE Coating (Internal + External) FBE (Fusion Bonded Epoxy) is a thermoset epoxy coating that is electrostatically applied as a powder and fused to the steel at high temperature, forming a tough, corrosion-resistant bond. When applied both inside and outside the body of the strainer, it provides: 1) Excellent corrosion protection against water, chemicals, moisture, and soil. 2) Abrasion resistance to prolong service life. 3) Smooth coated surfaces that reduce fouling and improve flow performance. Construction & Features 1) Body Material: Typically, carbon steel or ductile iron for structural strength. 2) Internal Mesh/Filter Element: Often stainless steel (e.g., SS304/SS316) perforated or woven screen to capture solids. 3) Flanged Ends: Standard flanges for bolting into a large diameter pipeline. 4) Large Chamber: Designed with a basket or screen housing that holds debris without causing significant pressure drop. 5) Heavy Weight (~6 tons): Indicates robust construction for high pressure classes and industrial use. Common Industries 1) Water/wastewater & municipal treatment 2) Petrochemical & chemical process plants 3) Power generation 4) Oil & gas transmission 5) Large industrial HVAC systems

FBE (Fusion Bonded Epoxy) is a thermoset epoxy powder coating that is fused and chemically bonded to the metal surface at high temperature to form a continuous, hard, corrosion-resistant protective layer. It is widely used in piping systems for internal and external corrosion protection. When applied to an internal T strainer, the FBE coating: 1) Protects the internal metal surfaces from corrosion (from water, chemicals, moisture). 2) Extends equipment life in harsh industrial environments. 3) Provides a smooth surface that resists build-up and improves flow. Main Benefits 1) Corrosion protection from FBE coating increases service life. 2) Protects downstream equipment from solid particle damage. 3) Large flow capacity suitable for big industrial pipelines. 4) Easy maintenance with removable internal element.

Fluropolymer Coatings & Lining Usage/Application Industrial Use Packaging Size 20L Is It Waterproof Waterproof Payment Type Offline/Online Service Mode Offline Service Type Fluropolymer Coatings & Lining Service Established as a Pvt.Limited Company firm in the year 2020, we “Heatman Products Private Limited” are a leading Manufacturer of a wide range of Coated Pipe, Rebar Coupler, etc. Situated in Ahmedabad (Gujarat, India), we have constructed a wide and well functional infrastructural unit that plays an important role in the growth of our company.
